CRM:Custom webhook - Post CDRs to webhook

You can use a custom webhook to post CDRs to your custom solution using our webhook option.

Note: Only Admin User can access these Integration Settings.

Open Chrome Extension (TheHUB)

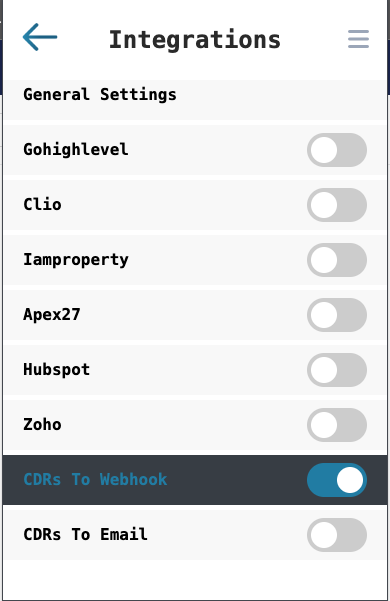

Click on Top Right Menu -> Integrations -> CDRs to Webhook

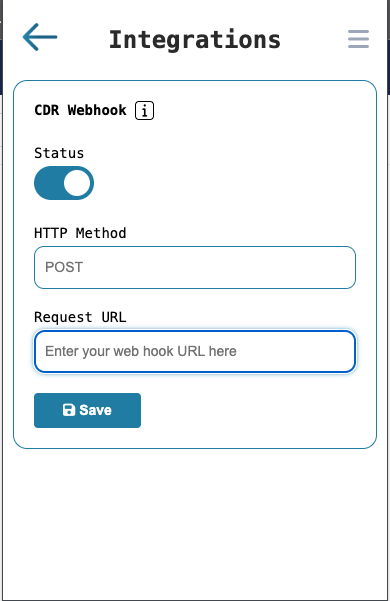

Turn On “CDRs To Webhook” -> Status -> Turn this setting on to use webhook
HTTP method is only allowed to “POST”
Request URL -> add your webhook URL here on which CDRs will be posted
Click on “Save” button

Sample Payload of CDRs posted to webhook:

Note: your webhook must respond with status 200 or 201 to confirm the receipt of the data

JSON ▼

{
    "type": "cdr",
    "cdrs": [
        {
            "uniqueid": "pbx01-1756728013.921580",
            "start_time": "2025-09-01 13:00:12",
            "call_type": "IN",
            "caller_number": "442031703746",
            "dialed_number": "442039702436",
            "disposition": "ANSWERED",
            "duration": "348",
            "recording_url": "https://smsapi.thehubwork.com/api/cdr/call-recording/pbx01-1756728013.921580?token=1234"
        },
        {
            "uniqueid": "pbx01-1756728615.921580",
            "start_time": "2025-09-01 15:00:12",
            "call_type": "OUT",
            "caller_number": "442039702436",
            "dialed_number": "442031703746",
            "disposition": "ANSWERED",
            "duration": "54",
            "recording_url": "https://smsapi.thehubwork.com/api/cdr/call-recording/pbx01-1756728615.921580?token=1234"
        },
        {
            "uniqueid": "pbx01-1756728656.923783",
            "start_time": "2025-09-01 16:01:17",
            "call_type": "IN",
            "caller_number": "442031703746",
            "dialed_number": "442039702436",
            "disposition": "ANSWERED",
            "duration": "348",
            "recording_url": "https://smsapi.thehubwork.com/api/cdr/call-recording/pbx01-1756728656.923783?token=1234"
        }
    ]
}

Note: If Call Summary Setting is turned on then summary for the CDR will be posted to your webhook when it is generated.

Sample Payload of CDR Transcription/Summary posted to webhook:

JSON ▼

{
    "type": "call_summary",
    "cdrs": [
        {
            "uniqueid": "voip01-1770877300.19943444",
            "transcription": "No speech",
            "summary": "The call had no speech."
        },
        {
            "uniqueid": "voip01-1770877720.19943491",
            "transcription": "No speech",
            "summary": "The call transcription contains no speech or content to summarize."
        },
        {
            "uniqueid": "voip01-1770877892.19943581",
            "transcription": "Hello. Hello. This is sales call with my internal number.",
            "summary": "A sales call was initiated, and the caller identified themselves with an internal number."
        }
    ]
}

CDR Journaling & Call Summary setup guide

Requirements for call summary:

OpenAI API Key -> This is needed to generate summary from call transcription
AssemblyAI API Key -> This is needed to generate call transcription from call recording file

Note:

There are 10 users under 1 tenant and anyone user has turned on CDR Journaling then CDRs for all users will be exported.
If multiple users under one tenant has turned on CDR Journaling then we will take first user setting and use it, all settings will be used from that user like CDR Journaling, Auto Create Contact in CDR Journaling, Call Summary, OpenAI APi Key, AssemblyAI API Key etc…
If one user under one tenant has turned on Clio integration and authenticated then CDRs for all users will be exported to Clio

OpenAI API Key Setup Guide

Login to OpenAI developer account
https://platform.openai.com/
Create project -> TheHUB
Go to Settings -> API Key -> New Secret at
- https://platform.openai.com/settings/organization/api-keys
Create new API Key named TheHUB and select project TheHUB
Select permission all
Click create
Copy API Key
Add it against tenant in chrome extension to use call summary feature at
- Chrome Extension -> Top Right Menu -> Integrations -> General Settings ->
- Turn on call summary
- Add OpenAI API Key
- Save

AssemblyAI API Key Setup Guide

Login to AssemblyAI developer account
https://www.assemblyai.com/
Go to API Keys in left side menu
Create project -> TheHUB
Select TheHUB in API Keys page
Click on “create new API Key” button
Add API Key name “TheHUB”
Click on create
Copy API Key
Add it against tenant in chrome extension to use call summary feature at
- Chrome Extension -> Top Right Menu -> Integrations -> General Settings ->
- Turn on call summary
- Add AssemblyAI API Key
- Save
